Truth Entrygard
Use the table below for the Truth Entrygard Dual Arm Operators
Truth has been manufacturing some of the best window operators and accessories on the market since their beginnings over 60 years ago. The Truth line of EntryGard operators and parts combine a heavy-duty design with state-of-the-art electronics to ensure the safe and stable operation of your windows.
EntryGard by the Truth brand (commonly misspelled as Entry Guard by Truth) has been a trusted and reliable window hardware and accessories line for years. We distribute a wide range of EntryGard by Truth operators and parts for you to choose from that you can easily order from us online.
On some window operators in the EntryGard by Truth line, you will find specific numbers that have been stamped on the housings and arms. You can use these numbers to narrow down your search for which EntryGard by Truth window operator you currently have. Let us know what numbers are stamped on your EntryGard Truth operators so that we can make an educated guess as to which style of operator you have.
If you are still not sure about which EntryGard by Truth operator you need to replace or buy parts for, you can always email us pictures of your operator to contact@robertbrooke.com so that we can help you to determine the correct piece of hardware you will need.
EntryGard Truth Operators
The EntryGard line by Truth consists of a handful of unique window operator styles. This includes dual arm, split arm, dyad, stainless steel, left-handed, right-handed and other styles of EntryGard Truth operators.
One common operator that we carry is the Truth EntryGard 20810 Operator. If you’re having trouble determining whether you need to replace your Truth EntryGard 20810, we can help. This is a dual arm device that will have 20810 stamped on its linkage arm. This device requires you to choose a hand, left or right.
We also carry the Truth EntryGard 20810 Dyad Operator. If you would like to figure out whether you have a Truth EntryGard 20810 in place, you will want to check the linkage arm, gear and base.
The linkage arm for the Truth EntryGard 20810 will be stamped with 20810A. The gear for the Truth EntryGard 20810 will be stamped with 31367L and the base will be stamped with the number 45108. For this device, you will also need to choose a hand.
As far as 20810, we also have the EntryGard Operator Offset Down 20810 or 20544. If you need to find out whether this is an operator you need to replace, look for those two numbers that will be stamped on the linkage arm. You will need to use a left-hand operator if your window lock is on the left side, and vice versa.
We have many other operator options that we keep regularly stocked such as the EntryGard Operator 20544, the EntryGard Operator 20748, the EntryGard Operator In Stainless Steel, the EntryGard Operator 20755 and more. Please see our below list of relevant hardware for EntryGard by Truth operators.
EntryGard Truth Window Hardware
While inspecting your windows, you might find that you need to replace certain parts on your EntryGard Truth operators. We distribute numerous EntryGard Truth parts such as handles, covers and brackets.
Handle options for EntryGard include EntryGard Cover and Handle or the EntryGard Flip and Fold Handle 12905. As with the operators, we can always help you to figure out which handle or other EntryGard hardware is best suited for the repair that you need to make.
Whether you are making a decision to purchase a bracket, a handle, a cover or a roller track, we’ve got you covered. Finding the right part will be a crucial factor to whether it can be installed properly and to how your device operates over time.
One cover that we carry by itself is the EntryGard 10341 Cover. This plastic cover is made to fit all operators from the EntryGard line. It comes in beige, white, gold, coppertone, clay or bronze.
We carry several styles of EntryGard brackets, so be sure that you understand which type you require before placing your order. The brackets that we supply differ in handing and which operator they will be attached to. It’s important to know which hand will work and which operator you have in order to settle on which bracket you will require to make your repairs.
Another popular EntryGard part that we carry is a detach clip. These detach clips can be used as replacement clips for hinges and operators that were manufactured by the Truth brand. The EntryGard detach clips we distribute are the EntryGard Detach Clip 30591 and the 30385 Detach Clip.
Contact EntryGard Truth Suppliers
Don’t be hesitant to reach out to our experts if you have any inquiries when purchasing EntryGard Truth window operators and parts from our web store. We want you to receive the best EntryGard hardware for your project, and asking us any questions you have will be key to satisfaction with your order.
Allow us to provide you with helpful tips and guidance by calling 1 (800) 642-2403 or emailing GregJ@robertbrooke.com to receive professional assistance with your EntryGard order. Minus weekends, we are available during the week between the hours of 8 a.m. to 5 p.m. Eastern Time. We hope that you are 100 percent satisfied with the EntryGard items that are shipped to you.
-
Truth Entrygard Operator 20810
Truth Entrygard Dual Arm Operator. We would expect you to find 20810 on the linkage arm, which measures 4-7/16" overall length. This is the most common size we find in use. Other common numbers we would expect to find are 31538, 31539, 30841, 30842, 30472, 30470, 20810, or 20544. Also known as a TH-23076 or TH-23077.
4-7/16" link dimension, offset up. For offset down, order Wi1561.
Order Wi1516 if your link dimension is 3-3/4" stamped 20755.
Order Wi1515 if your link dimension is 2-7/8" stamped 20748.MOST POPULAR SIZE
To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator.
PART # HAND
WI1510R RIGHT HAND-Shown Below
WI1510L LEFT HAND-Shown BelowWI1510 -
Truth Entrygard Operator Offset Down 20810 Or 20544
Truth Entrygard Dual Arm Operator. We would expect you to find 20810 or 20544 on the linkage arm, which measures 4-7/16" overall length. This is the most common size we find in use. Other common numbers we would expect to find are 31538, 31539, 30841, 30842, 30472, 30470, 20810, or 20544. Call or email for quantity "Discount Codes".
For offset up, order Wi1510.
To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator.
PART # HAND
WI1561R RIGHT HAND-Shown Below
WI1561L LEFT HAND-Shown BelowWI1561- -
Truth Entrygard Operator 20755
Truth Entrygard Dual Arm Operator. We would expect you to find 20755 on the linkage arm, which measures 3-3/4" overall length. Other common numbers we would expect to find are 31538, 31539, 30841, 30842, 30472, 30470, and 20755. Call or email for quantity "Discount Codes".
To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator.
3-3/4" link dimension, offset up. For offset down order Wi1520
Order Wi1510 if your link dimension is 4-7/16" stamped 20810.
Order Wi1515 if your link dimension is 2-7/8" stamped 20748.PART # HAND
WI1516R RIGHT HAND-Shown Below
WI1516L LEFT HAND-Shown BelowWI1516 -
Truth Entrygard Operator (20755 On Bottom Of Linkage Arm)
Truth Entrygard Dual Arm Operator. We would expect you to find 20755 on the bottom of the linkage arm, which measures 3-3/4" overall length. Other common numbers we would expect to find are 31538, 31539, 30841, 30842, 30472, 30470, and 20755. Call or email for quantity "Discount Codes".
To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator.
3-3/4" link dimension, offset down. For offset up order Wi1516
Order Wi1510 if your link dimension is 4-7/16" stamped 20810.
Order Wi1515 if your link dimension is 2-7/8" stamped 20748.Left hand shown.
PART # HAND
WI1520R RIGHT HAND-Shown Below
WI1520L LEFT HAND-Shown BelowWI1520 -
Truth Entrygard Operator 20748
Truth Entrygard Dual Arm Operator. We would expect you to find 20748 on the linkage arm, which measures 2-7/8" overall length. Other common numbers we would expect to find are 31538, 31539, 30841, 30842, 30472, 30470, and 20748. Call or email for quantity "Discount Codes".
2-7/8" linkage dimension, off set up.
Order Wi1516 if your link dimension is 3-3/4" stamped 20755.
Order Wi1510 if your link dimension is 4-7/16" stamped 20810.To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator.
Left hand shown in main picture.
PART # HAND
WI1515R RIGHT HAND-Shown Below
WI1515L LEFT HAND-Shown BelowWI1515- -
Truth Entrygard Operator - Stainless Steel 4-7/16
Truth Entrygard Dual Arm Window Operator. This operator is the same as the Wi1510, except are arms are made of stainless Steel
To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator.
Common numbers found on this operator are 30758 RH , 30757 LH, 30514, 30852, 20812, and 30767
Left hand shown.
Window Operator Handing
WI1514 -
Truth Entrygard Operator 20544
Truth Entrygard Operator 20544
Common numbers found on this operator are 30636, 30637, and 20544 for the old style,
31368, 20810, and 45275 for the new style. Also known as a TH-23078 and TH-23079.For link off-set up version order Wi1562
See attached file of what the Original Version looked like
Left hand shown.
Window Operator Handing
WI1511 -
Truth Entrygard Dyad Operator 20810
Truth Entrygard Dyad Operator 20810. The 15.62 is no longer manufactured, we can not get the Right Hand anymore, but have a decent supply of Left Hand's.
Same as the Wi1511, but linkage arm is off set up
Linkage arm stamped 20810A, gear stamped 31367L, base stamped 45108
4-7/16" link dimension, offset up. For offset down, order Wi1511.
Window Operator Handing
Wi1562 -
Truth Entrygard Operator 40575 Or 40574
Truth Entrygard Operator 40575 Or 40574
Common numbers found on the older version of this operator are 40575 for the right hand operator, and 40574 for the left hand operator
To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator.
Left hand shown.
Window Operator Handing
WI1594 -
Truth Operator 9-1/2"
Truth Operator 9-1/2". This new style replaces the older traditional size shown in the diagrams.
To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator.
We sometimes find the number 45251 cast on the housing, and 40049 and 40050 stamped on the arms. This operator has a Nylon Roller or Wheel.
Left hand shown. The Wi11454 handle in matching color is included
p>Window Operator Handing
Color Chart
WI1531 -
Truth Operator 13-1/2"
Truth Operator 13-1/2"
Truth Single Arm Window Operator. This new style replaces the older traditional size shown in the diagrams.
To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator.
We sometimes find 45251 cast on the housing, and 40051 and 40052 stamped on the arm
Left hand shown. The Wi11454 handle in matching color is included with the operator.
Window Operator Handing
Color Chart
WI1532 -
Truth Split Arm Operator 30905
Truth Split Arm Operator 30905
Common number found on this operator is 30905, which is found on the linkage arm, along with 45035 on the body, 40351 and 40352 on the arms. Also known as a TH-24174, TH-24175, TH-24176, and TH-24177. Replaces the TH-24018, TH-24019, TH-24020 and TH-24021.
To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator. Ships with matching handle.
Left hand shown.
Window Operator Handing
Color Chart
WI1518 -

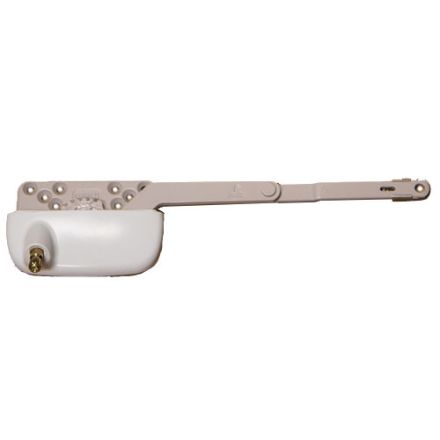

Truth Split Arm Operator 15.26
Truth Split Arm Operator 15.26
To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator. Ships with matching handle.
Left hand shown. White and Bronze only
Color Chart
Window Operator Handing
WI1526 -
Truth 15.30 Split Arm Operator
Truth Split Arm Operator 31850
To determine hand of operator, if your sash lock (window lock), is on the left, you would use a left hand operator. And if your sash lock is on the right, you would order the right hand operator. Ships with matching handle.
Left hand shown. White and Coppertone only
Common numbers found on this operator is 31850
Window Operator Handing
Color Chart
WI1530
