Miscellaneous

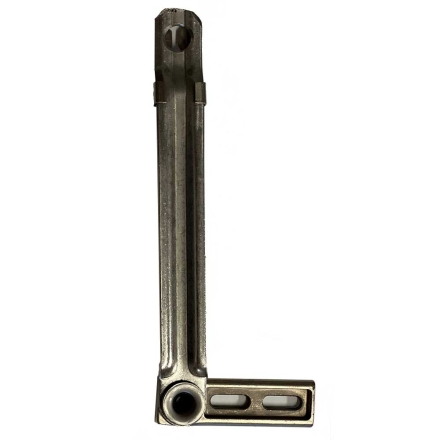

The Roto Notched Out SS Connecting Arm with Bracket is used with older Roto Operators.  Arm measures 5-3/8" long and the die cast bracket measures 2-1/8" long.

The Roto Notched Out SS Connecting Arm with Bracket is used with older Roto Operators.  Arm measures 6-7/8" long and the die cast bracket measures 2-1/8" long.

Casement Window Operator 9" Arm

Die cast housing with steel arm. The hole spacing of the window operator housing is 4-3/4" on the outside screws and 3-7/8" on the inside two screws. The arm is 9" from the roller to the center of the window operator housing. This operator uses a 5/16" spline operator, part #Ro169516.

Ro267 Right Hand
Ro268 Left Hand

Handing Diagram

Casement Window Operator 11" Arm

Die cast housing with steel arm. The hole spacing of the window operator housing is 4-3/4" on the outside screws and 3-7/8" on the inside two screws. The arm is 11" from the roller to the center of the window operator housing. This operator uses a 5/16" spline operator, part #Ro169516.

Casement Window Operator 9" Arm

Replacement Casement Window Operator is made of a die cast housing and steel arm. The window operator housing has 4 mounting holes, 4-3/4" are the outside dimensions of the outside screws and 3-7/8" on the inside screws.

Right Hand Operator Shown in picture

Handing Diagram

Pella Casement Operator Cover

Right Hand Cover Shown

Pella Casement Operator Cover

Right hand shown in Copperite

The Split Arm Roto Operator has been around for the past 10-15 years.  The housing is 4-1/2" wide, and the linkage arm has an overall length of 4-3/8".  One of the most recognizable features of this mechanism is the female hex fitting for the handle.

Right Hand shown in the picture

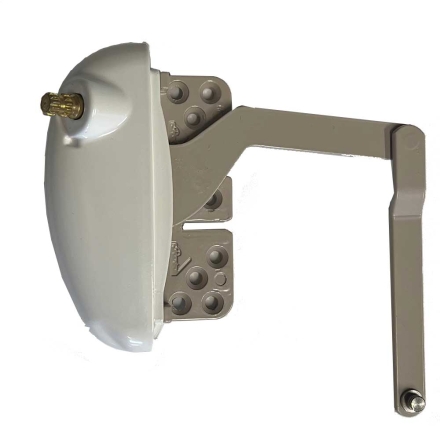

Roto Split Arm Operator Pin Up

The housing is 4-1/2" wide, and the linkage arm has an overall length of 4-3/8"

Left Hand shown in the picture

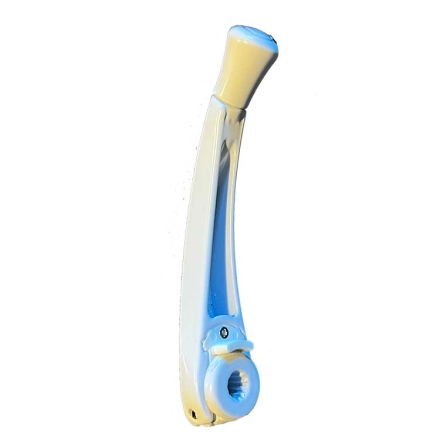

Roto Folding Handle for the Wi21339 and Wi36540.

The Roto Folding Handle for Pro Drive Operators features die cast construction, and powder coated finish.   The hex is 5/16", and the handle has a overall length of 4-1/4".

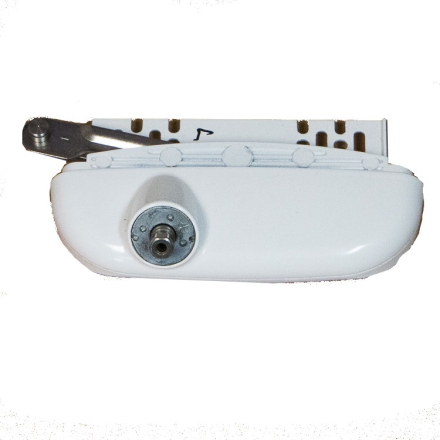

Casement Roto Operator

This Roto Casement Operator features a hole spacing of 3-1/2" on thee outside mouting holes and 1-7/8" on the two inside mouting holes.  The housing is contructed of die case metal that is electro-statically painted.   The housing is 5-1/2" wide.  The optional handle fits the 5/16" Hex Shaft.

Left Hand Shown in picture

The 5/16" Hex Crank Handle is used mainly on Roto Window Operators.   We sometimes find the number P4601 cast into the back of this handle.  We can only get these in the White Color.

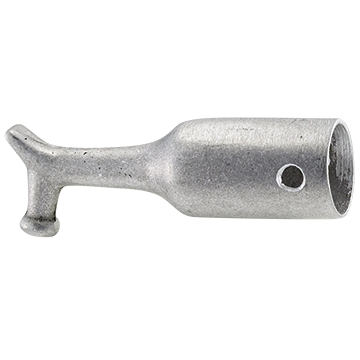

The Elevated Window Pole Hook has cast white bronze construction. 3/4 inch inside diameter x 3-1/2 inch long, for use on elevated windows. Pole not included.

Replacement Hope's Window Operator.

Die cast construction with steel arm. The arm measures 9-1/2" long for the roller to the center of the housing.

This GU Split Arm Operator replaces the original version which was plastic.  The new version is made of die cast metal and is much stronger that the original. Comes with handle.

Right Hand Shown
